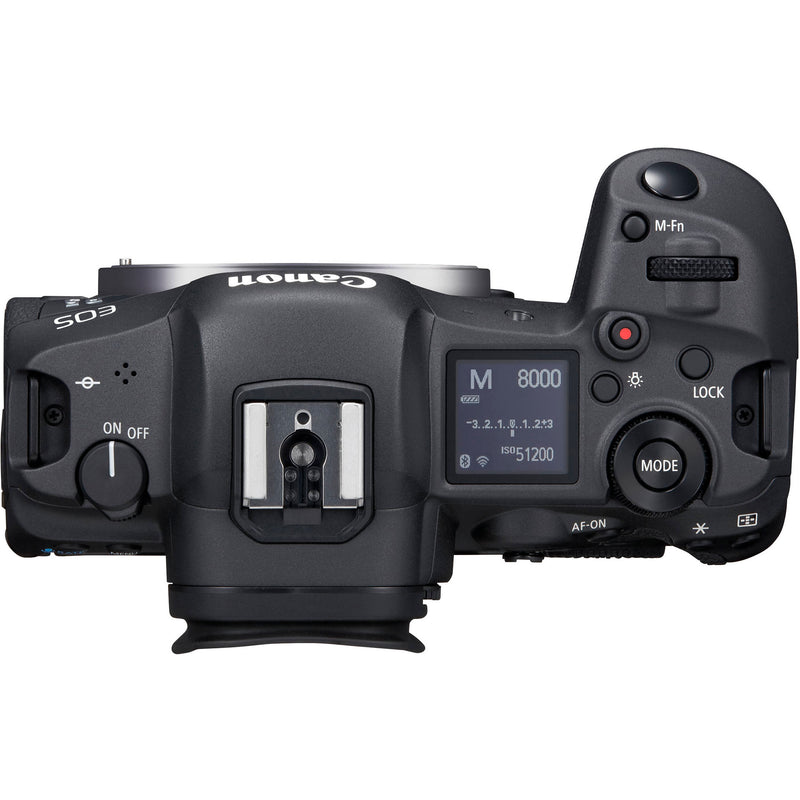

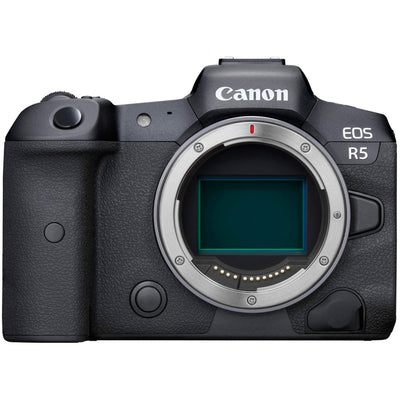

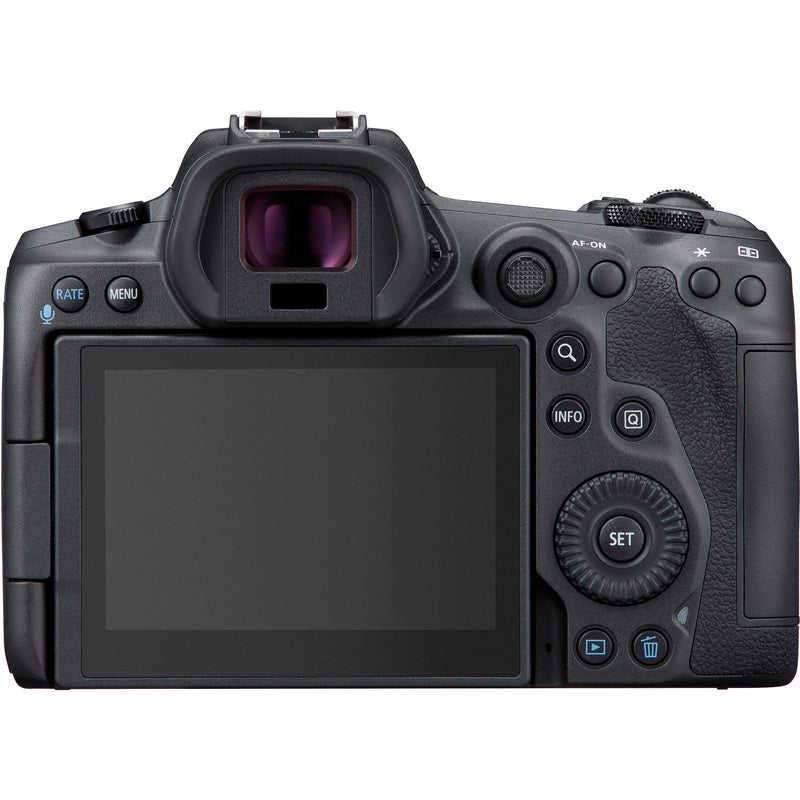

Canon EOS R5
Whatever you shoot, however you shoot it, the EOS R5 will let you be creative in ways you simply couldn’t before. Capture sensational 45 megapixel photos at up to 20 frames per second*, or cinematic 12 bit 8K RAW video using the entire width of the camera’s sensor. Advanced AF is programmed using deep-learning artificial intelligence, while in-body image stabilisation works in concert with a lens’s own IS to provide up to 8 stops of protection against camera shake.
See detail like never before
A next-generation 45 megapixel full-frame CMOS sensor captures incredible clarity, low noise and wide dynamic range: the perfect partner for our advanced RF lenses.
Stay sharp, stay focused
Dual Pixel CMOS AF II is lightning-fast to focus and boasts 5940 AF selectable positions, covering virtually 100% of the frame. Fast-moving subjects are kept sharp, even when moving quickly and unpredictably, while Face/Eye detection is superb for shallow-depth-of-field portraits.
Setting new standards for filmmakers… all over again
As the pioneers of DSLR video, and the developers of the acclaimed Cinema EOS range of cameras and lenses, we were well-placed to give the EOS R5 some formidable filmmaking capabilities. Capture superb 12-bit RAW video internally at 8K, or record 4K (4:2:2 10-bit) at frame rates up to 120p for exceptional slow-motion effects. All this using the full-width of the camera’s full-frame sensor for a truly cinematic look. Dual Pixel CMOS AF II with Face/Eye Detection keeps things looking sharp and allows impressive pull-focus transitions in all video modes.
Supplied Accessories: Camera Cover R-F-5 - Strap ER-EOS R5 - Battery Charger LC-E6 - Battery LP-E6NH - Battery Pack Cover - AC Cable - IFC Cable IFC-100U + Protector - User Manual
| Body type | SLR-style mirrorless |
| Max resolution | 8192 x 5464 |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 |
| Effective pixels | 45 megapixels |
| Sensor photo detectors | 47 megapixels |
| Sensor size | Full frame (36 x 24 mm) |
| Sensor type | CMOS |
| Processor | Digic X |
| ISO | Yes, 100-51200 (expands to 102400) |
| Boosted ISO (minimum) | 50 |
| Boosted ISO (maximum) | 102400 |
| White balance presets | 8 |
| Custom white balance | Yes |
| Image stabilization | Sensor-shift |
| Image stabilization notes | Works with lens-based IS systems for maximum shake reduction |
| CIPA image stabilization rating | 8 stop(s) |
| Uncompressed format | RAW |
| JPEG quality levels | Fine, normal |
| Autofocus | Phase DetectMulti-areaCenterSelective single-pointTrackingSingleContinuousTouchFace DetectionLive View |
| Manual focus | Yes |
| Number of focus points | 1053 |
| Lens mount | Canon RF |
| Focal length multiplier | 1× |
| Articulated LCD | Fully articulated |
| Screen size | 3.2″ |
| Screen dots | 2,100,000 |
| Touch screen | Yes |
| Screen type | TFT LCD |
| Live view | Yes |
| Viewfinder type | Electronic |
| Viewfinder coverage | 100% |
| Viewfinder magnification | 0.76× |
| Viewfinder resolution | 5,760,000 |
| Minimum shutter speed | 30 sec |
| Maximum shutter speed | 1/8000 sec |
| Maximum shutter speed (electronic) | 1/8000 sec |
| Aperture priority | Yes |
| Shutter priority | Yes |
| Manual exposure mode | Yes |
| Subject / scene modes | No |
| Built-in flash | No |
| External flash | Yes (via hot shoe) |
| Continuous drive | 20.0 fps |
| Self-timer | Yes |
| Metering modes | MultiCenter-weightedSpotPartial |
| Exposure compensation | ±3 (at 1/3 EV, 1/2 EV steps) |
| AE Bracketing | ±6 (2, 3, 5, 7 frames at 1/3 EV, 1/2 EV steps) |
| WB Bracketing | Yes |
| Format | MPEG-4, H.264, H.265 |
| Modes | 8192 x 4320 @ 30p / 1,300 Mbps, MOV, H.265, Linear PCM8192 x 4320 @ 24p / 1,300 Mbps, MOV, H.265, Linear PCM8192 x 4320 @ 23.98p / 1,300 Mbps, MOV, H.265, Linear PCM7680 x 4320 @ 30p / 1,300 Mbps, MOV, H.265, Linear PCM7680 x 4320 @ 23.98p / 1,300 Mbps, MOV, H.265, Linear PCM4096 x 2160 @ 120p / 1,880 Mbps, MOV, H.265, Linear PCM4096 x 2160 @ 60p / 940 Mbps, MOV, H.265, Linear PCM4096 x 2160 @ 30p / 470 Mbps, MOV, H.265, Linear PCM4096 x 2160 @ 24p / 470 Mbps, MOV, H.265, Linear PCM4096 x 2160 @ 23.98p / 470 Mbps, MOV, H.265, Linear PCM3840 x 2160 @ 120p / 1,880 Mbps, MOV, H.265, Linear PCM3840 x 2160 @ 60p / 940 Mbps, MOV, H.265, Linear PCM3840 x 2160 @ 30p / 470 Mbps, MOV, H.265, Linear PCM3840 x 2160 @ 24p / 470 Mbps, MOV, H.265, Linear PCM3840 x 2160 @ 23.98p / 470 Mbps, MOV, H.265, Linear PCM |
| Microphone | Stereo |
| Speaker | Mono |
| Storage types | CFexpress and SD (UHS-II) slots |
| USB | USB 3.2 Gen 2 (10 GBit/sec) |
| USB charging | Yes |
| HDMI | Yes (micro HDMI) |
| Microphone port | Yes |
| Headphone port | Yes |
| Wireless | Built-In |
| Wireless notes | 802.11ac (dual-band) + Bluetooth |
| Remote control | Yes |
| Environmentally sealed | Yes |
| Battery | Battery Pack |
| Battery description | LP-E6NH lithium-ion battery & charger |
| Battery Life (CIPA) | 320 |
| Weight (inc. batteries) | 738 g (1.63 lb / 26.03 oz) |
| Dimensions | 138 x 98 x 88 mm (5.43 x 3.84 x 3.46″) |
| Orientation sensor | Yes |
| GPS | None |
